Maize milling machine,capacity 50 to 100 tons per day is medium scale maize flour milling for entrepreneur.
Advance roller stands
Screw air compressor
Stainless steel pipe where contact with the material
We have different type for different market and different client's needs.

All design is customized for you!

1: How about market for 50-100ton/24h maize flour mill plant?
In October of 2015,the client from Kenya signed new contract for 50 ton/24h maize mill after checked everything in Hongdefa factory of China,he checked all of single machines .He did have checked the running maize mill line here and final product quality. That is what needed!

Another client from Zambia ordered one 50 ton/24h maize mill in 2009,six months later,he came to visit Hongdefa factory again and signed another new contract for same 50t/24h maize mill and 1000 tons silo.  The factory now is running two complete line of 50 tons maize mill  plant!

​​
Warmly welcome you to China Hongdefa factory visit running maize mill line

2: How about the 50-100t/24h maize milling plant quality?
Top quality!
Maize Moisture damper for adding water, stainless steel.
Maize Conditioning middle bin ,stainless steel.

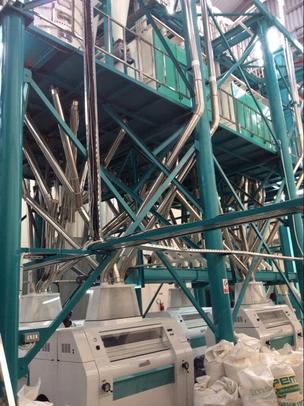

All pipes in flour system where contact with material,all stainless steel.



3: How about the maize mill degerminating system ?
Use Japan degerminating system and South African maize experience ,it scrub the bran from the maize kernel and to dislodge the germ from its cavity,with the minimum reduction in size of the broken fragment. To ensure maize meal and maize flour super white!

4: Does the whole system need water ?
Yes, before degerminating and  milling the maize, should put the water to the maize, and let the maize sleep in the bin for some time, it will be easily to take the skin and germ out of the maize.


5: Can we put vitamin adding machine for maize flour mill?
Sure! As some local market or government request,we can equip the vitamin adding machine to put some elements inside like vitamin A,B,C,iron etc. That is more satisfactory.

6: How about the packaging machine?
The auto packaging machine can pack different size bags, like 5kg, 10kg, 12.5kg, 25kg, 50kg etc.

And can pack also different kind of material like paper bags/PP bags/cloth bags etc

10-25kg auto-packing for 10kg,12.5kg,20kg,25kg etc.
25-50kg auto-packing for 25kg,30kg,50kg etc.



7:   50-100 tonnes/24hr maize mill,how many containers needed?
40ft*2 +20ft*1 for normal 50 ton maize mill.
40ft*4 for normal 100 tons maize mill.

8:  Maize mill total power consumption is how much?
150 kw to 350kw;depending on different technical flow

9: After pay the advance payment, how long time for the delivery?
Two to three months delivery time normally.

​​​​  Maize milling machine 5-10T/24h

Fill out my online form.

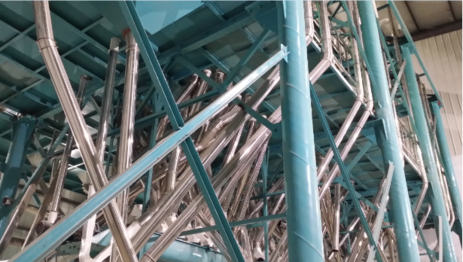

stainless steel pips in maize flour milling plant

Maize milling machine 20-30T/24h The 24 ton per day maize mill equipment is complete line from cleaning degerminating milling to packaging system. Easily operate, low cost, it is good project to begin with for farm use and starters.
Maize mill 24t/24h can processing different capacity maize grits,maize meal,maize flour and bran.

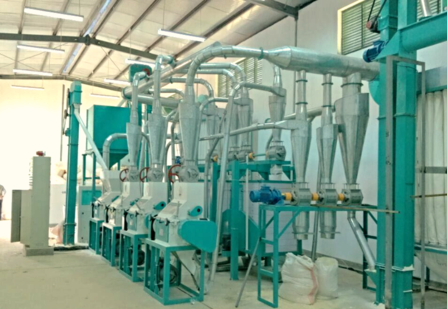

Maize posho mill machine running 24tonnes per 24hr in Nairobi,Kenya;final products: super white maize meal to cook "Ugali".
Maize hammer mill for Kampala ,Uganda,final product : super fine maize flour,maize posho meal.
Maize mill 24ton/24h running in Kinshasa,Congo,final products:maize farina and semoule,mixed together with cassava flour to cook "Fufu".


1:  How many containers for one HDFM24 Maize meal milling plant?
40feet container *1pcs
2:  Total power consumption is how much?
80kw  in the maize flour milling machinery.
3: After pay the advance payment, how long time for the delivery?
20days delivery time
4: How about the 24t/24h maize mill degerminating system ?
Use Japan degerminating system ,scrub the bran from the maize kernel and to dislodge the germ from its cavity,with the minimum reduction in size of the broken fragment. To ensure maize meal super white!
5: Does the whole system need water ?
Yes, before milling the maize, should put the water to the maize, and let the maize sleep in the bin for some time, it will be easily to take the skin and germ out of the maize.
6: How about the packing machine?
The auto packing machine can pack different size bags, like 5kg, 10kg, 12.5kg, 25kg, 50kg etc
7: How about the 24t/24h maize mill quality?
Top quality, Kenya client get investment back within three months!​​

The Principe of the technological designing: to choose the equipments should be  guarantee the demand of the craft function and various product quality, it is consisted by most advanced cleaning machine of China.The technological design is reasonable and adjusts vivid, strong adaptability,advance equipment, high automation degree,  credibility function, economy and practicality, good cleaning part. Choose the most  popular dry cleaning methods to process the maize to produce nonpollution maize  meal and maize flour. The stability of the machines is strong, the function is credibility,  economy and practicality, the quality of the maize meal and maize flour is stable, index  is forerunner.

1) Maize storage
The maize will go to maize store for around 150Tons

2) Maize cleaning.
Maize cleaning: cleaning process using vibrating sieve, destoner, magnetic separators  for drying cleaning. Use American design degerminator to get whole pcs germ,and use gravity table to  getting the maize germ.
We use double screw damper for keeping moisture the maize. microcomputer control  the water damper. add water to ensure a more accurate and uniform water,prevent  free water; the use of degerminator for peeling maize into small pieces and embryo  separated in order to ensure quality and by fully mechanized and use.2 set of moisture bins. The total capacity is 24tons. It can keep moisture maize 2hours for ensure the  maize processing going well.  There are dust removal system 4 groups.

3) milling technology
Milling process us light maize milling subdivision research methods, use of advanced  maize milling and sifting equipment to ensure that its process effect, using a set of  pneumatic conveying systems, five blower  air system, the process can also produce   3-6 kinds of high-quality final products. the fat content of not more than 1%.

​​ Maize Corn milling machine 20-30T/24h

degerminating system in maize flour milling line

  Maize milling machine 50-100T/24h

    Maize milling machines 120-600T/24h

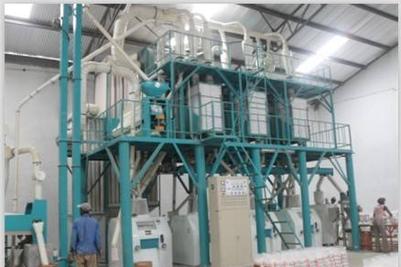

50 ton medium maize mill plant running in Congo

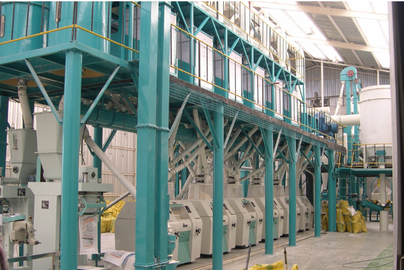

30 ton per day maize flour mill for super white maize meal

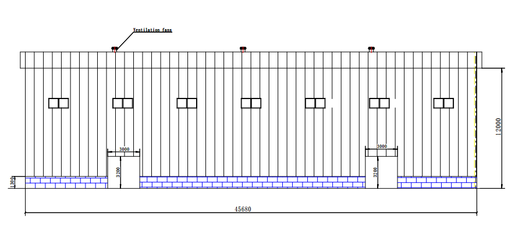

Technical design of corn flour mill machine

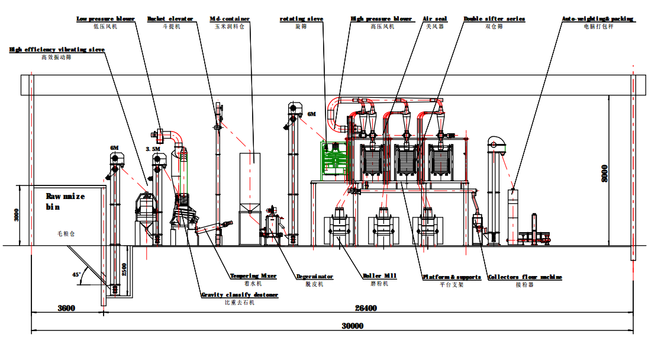

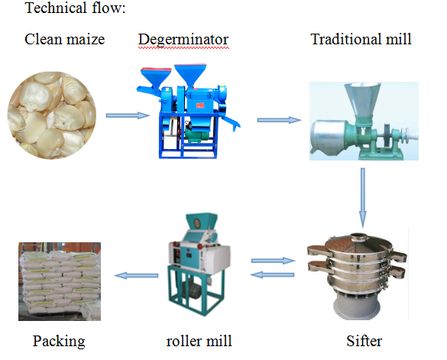

technical flow chart of small scale maize milling machine

Maize milling  processing line Cleaning maize first go to the degerminator, after the digerminator,

go to the tradition mill,the tradition mill is to break the big maize to the small middle maize grits,then go to the sifter,from the sifter, the sifter will separate the bran,germ,and the big grits,the breakfast meal will go packing, the big grits will go the the roller mill to milling to breakfast meal,after the roller mill, will go to the sifter again to get the breakfast meal from the maize milling plant.

All the system use electricity control box which can control all the motor.Have the contactor and

relay to protect the machine.and the control box have the Am meter can check the Ampere

anytime,can check each machine running details.

  The maize meal mesh size can be controlled by the sifter whole mesh size.The sifter screen can be changed easily,client can produce different mesh maize meal.

The whole machine pipe,and sifter are made by stainless steel,Clean,Beauty,Safety,Healthy

   Maize Feeding Pit              Maize Cleaning






Maize Degerminating    Maize Meal packing

Copyright © Shijiazhuang Hongdefa Machinery Co.,LTd. All rights reserved.

Contact us 24hr online:

Mrs. Tony Yao

Mobile:+86 18330112982 (Whatsapp/Imo/WeChat/Viber)

Email to:  info@wheatmaizemill.com ;  wheatmaizemill2@gmail.com

4 ton per hour maize milling machines for sale in South Africa
small scale maize milling machines for sale in Africa

​​ Maize Corn milling machine 5 - 500 tonnes per day

installed image of 150 metric ton maize milling machinery in Kenya

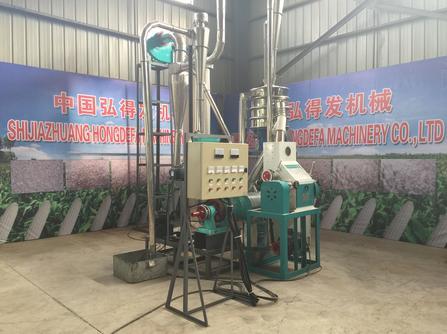

Maize milling machine HDFM5-10 is specially for countryside,farm,home use,in some country they call it posho mill, this maize milling machine use small working place, power supply just 8.7kw-27kw;  good for milling maize,with complete technical flow design,the maize milling machine can  produce degermed white breakfast meal,roller meal.Specially for Africa Market.


Maize milling machine HDFM5-10 use one No.4 Blower system,which lifting the maize and maize

 products ,maize bran,and dedust. One degerminator can scrub the bran from the maize kernel and to dislodge the germ from its cavity,with the minimum reduction in size of the broken fragment.

One traditional mill and one roller mill,which can break the maize fragment after the degerminator,and get the breakfast meal,roller meal.One vibratinground sifter,which can sifting final products,

to get right size final products.The cloth dust filter is for collect the light flour when processing,

to insure the workshop is very clean.
